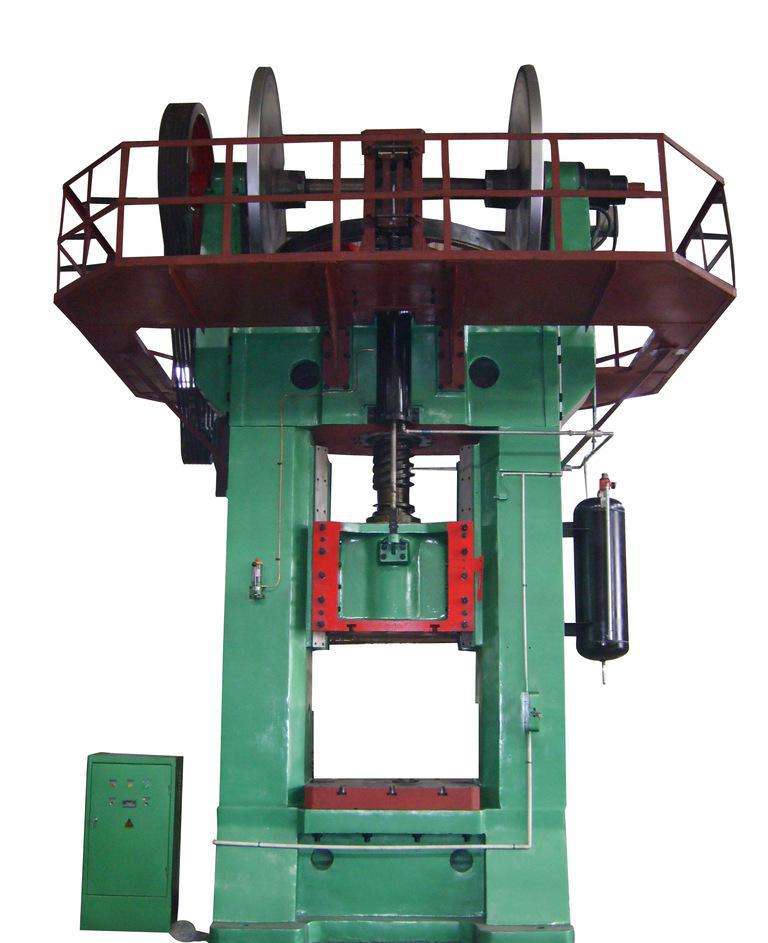

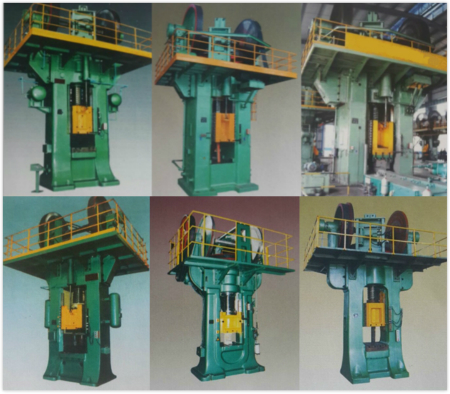

Series J53 Friction Screw Press for Die Forging
product num:
15
Email:

Series J53 friction screw press is suitable for die forging, exturding, cutting edge, bending of nonferrous and ferrous metal.

The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc, can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc.

Main Technical Parameters
Model Nominal Capacity Energy Slide Stroke Strokes per Minute min-1 Space for Installing die        mm Bed dimension F.B.*L.R. mm Bottom of Slide   F.B.*L.R. mm  Overall Dimensions F.B.*L.R.*H mm Main Motor Power kW Total Weight KG
JA53-63 630 2.25

200

35

 235 315*270 275*227 1010*1141*2655 5.5 2490
J53-100B 1000 5 310 19 220 500*450 390*280 1393*1884*3375 75 5743
J53-160C 1600 10 360 17 260 560*510 440*444 1465*2240*3730 11 9500

J53-300B

 3000 20 400 15 300 650*570 520*485 1820*2581*4345 22 15000
J53-400E 4000 40 500 14 400 820*730 636*636 2812*3200*5165 30 24000

J53-630B

 6300 80 600 11 470 920*820 760*700 4320*4694*6060 55 43513
J53-1000C 10000 160 700 10 500 1200*1000 1190*800 4400*6062*7290 90 82000
J53-1000K 10000 160 700 10 500 1200*1000 1190*800 4400*5240*7300 90 76155
J53-1600C 16000 280 7000 10 550 1250*1100 1000*900 4700*6120*8090 132 116386
J53-1600D 16000 280 7000 10 550 1250*1100 1000*900 4700*6120*8090 75*2 118850
J53-2500E 25000 500 800 9 680 1560*1200 156*1060 5360*7000*8190 110*2 220000
J53-3150A 31500 700 800 9 800 2000*1300 1900*1110 5400*7000*10210 160*2 320000
J53-4000 40000 850 800 9 800 2350*1300 2200*1110 5580*7961*10210 185*2 320000
J53-6300 63000 1000 800 9 800 2350*1300 2200*1110 5780*8366*10490 185*2 410000
J53-8000 80000 1150 800 8 800 2350*1300 2200*1110 5780*8366*10490 185*2 420000
J53-10000 100000 1650 800 8 900 2600*1600 2500*1440 6400*941012750 280*2

650000




We also have more kinds of forging equipments, if you are interested in them, please feel free to contact us!
