product name:

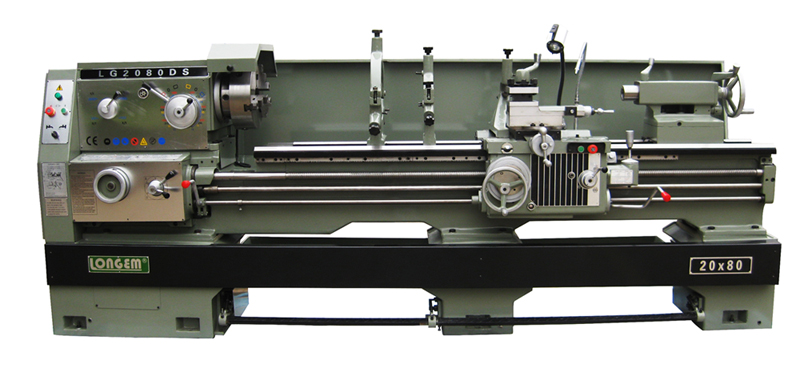

LG2080DS lathe
product num:
LG2080DS lathe
Email:
Features and Benefits:
· 10HP main motor
· 15 3/4” width of bed
· 24 spindle speeds from 11 to 1600 RPM
· D1-8 camlock spindle with 3 1/8” bore
· Spindle hardened & precision ground
· Bed made of fine grain high tensile cast iron
· Bedways hardened & precision ground
· Gears & shafts hardened & precision ground
· 4-way rapid traverse on carriage feed
· Headstock with mechanical clutch
· Automatic lubrication system in headstock & feedbox
· Handwheel automatically disengaged during longitudinal feed

Specs:
Model LG2080DS
Swing over bed 20 inch
Swing over cross slide 11.8 inch
Swing over gap 28.3 inch
Distance between centers 80 inch
Width of bed 15.75 inch
Taper of spindle hole Ø3.543 inch  1:20
Spindle nose D8 camlock
Spindle speed range (No.) 11-1600rpm (24)
Spindle bore diameter 3.125 inch
Longitudinal feed rate per revolution 0.0011-0.24 inch
Cross feed rate per revolution 0.00055-0.12 inch
Metric threads range (No.) 0.5-96mm (40)
Inch threads range (No.) 7/8-48TPI (46)
Max. travel of cross slide 12.6 inch
Max. travel of compound rest 5.5 inch
Tailstock spindle diameter 3 inch
Tailstock spindle travel 5.9 inch
Taper of tailstock spindle hole Morse No. 5
Main motor 10HP
Power supply 220V/440V/3Ph/60Hz

Please send inquiry to: tonywang@mec.com.cn
